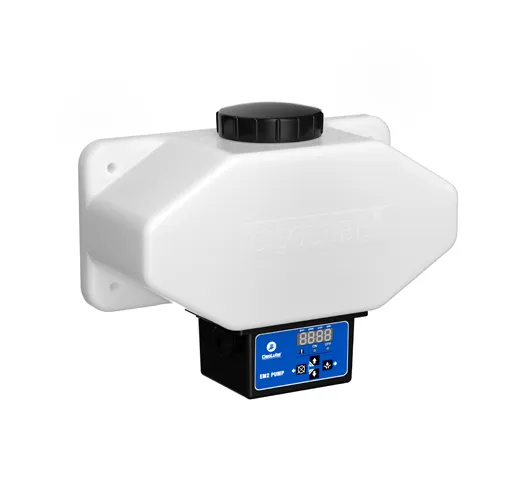

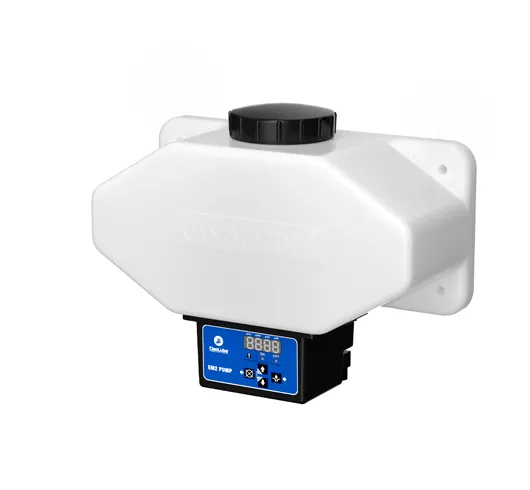

EM2 Oil Lubrication Pump

The EM2 oil lubrication pump is a compact unit specially designed for applications with limited installation space. Its small size makes it an ideal solution for providing centralized lubrication protection in compact machinery.

The pump features a white translucent reservoir, allowing easy visual monitoring of oil levels at any time. A large-diameter filling port with a built-in filter ensures effective impurity interception, guaranteeing long-term safe and reliable equipment operation.

The EM2 oil lubrication pump is available in two configuration modes:

Standard Model – controlled by an external PLC. It does not include an internal control unit, making it a more economical option for lubrication systems.

Technical Information of EM2 Oil Lubrication Pump



TECHNICAL DATA

Outlet thread

G1/4

Rated flow

20ml/min

Operating preasure

7MPa

Reservoir Capacity


2L、7L

Lubricants


OIL

Voltage


12VDC、24VDC

Power Consumption


20W

Operating temperatures


-40 - 70℃

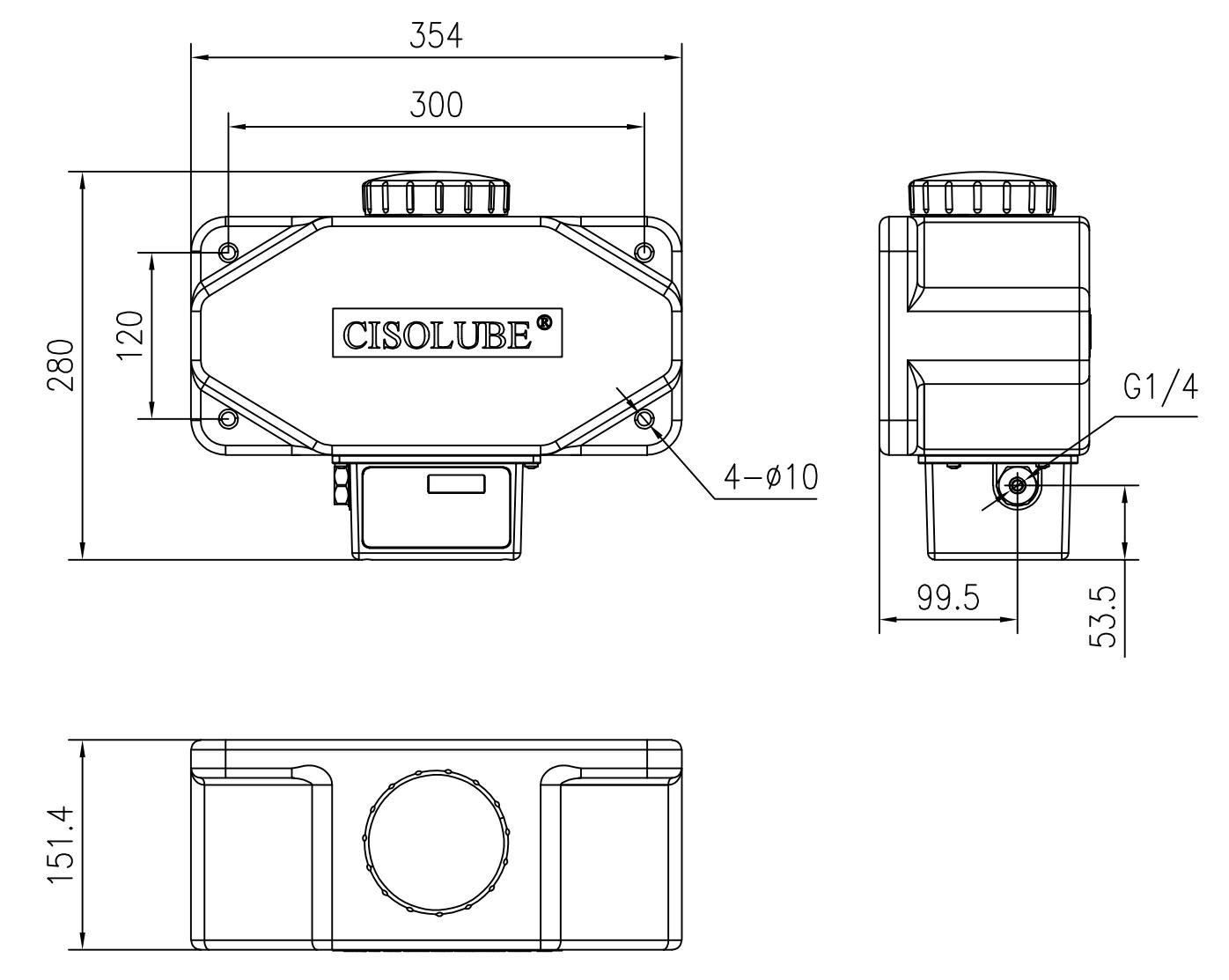

Dimensions(mm) of EM2 Oil Lubrication Pump



Features and advantages of EM2 Oil Lubrication Pump


  • Easy and quick operation

  • Top-cover design for convenient oil refilling

  • Built-in filter to effectively prevent impurities and ensure safe, reliable equipment operation



Application Industries of EM2 Oil Lubrication Pump


  • Urban Rail Transit

  • Regional Trains

  • Intercity Trains and Locomotives


Cisolube offer custom lubrication pumps with a wide selection, Contact now!
