MTP Manually Operated Pump
The MTP manual pump is specifically designed for lubrication points that do not require continuous lubrication, capable of re- liably and accurately delivering lubricant.
Constructed with a robust design, the pump features dual-piston drive and is equipped with a 3-liter capacity oil tank integrated with an agitator, ensuring uniform lubricant delivery under var- ious operating conditions. It offers stable and reliable performa- nce, maintaining effective operation even in low-temperature environments.
With a working pressure of up to 300 bar, it is suitable for intermittent oil supply requirements in medium- to high-pressure lubrication systems.
Technical Information of MTP Manually Operated Pump
Technical data | |
Outlets | 2 |
Outlet connection | G1/4 |
Lubricant output per stroke | 1 output：2ml/cyc ；2 outputs： 2×1ml/cyc |
Operating pressure | 30MPa；4350psi |
Reservoir capacity | 3L |
Lubricant | OIL、000、00、0、 1、2、3 |
Operating temperature | -20 ~ 70℃ |

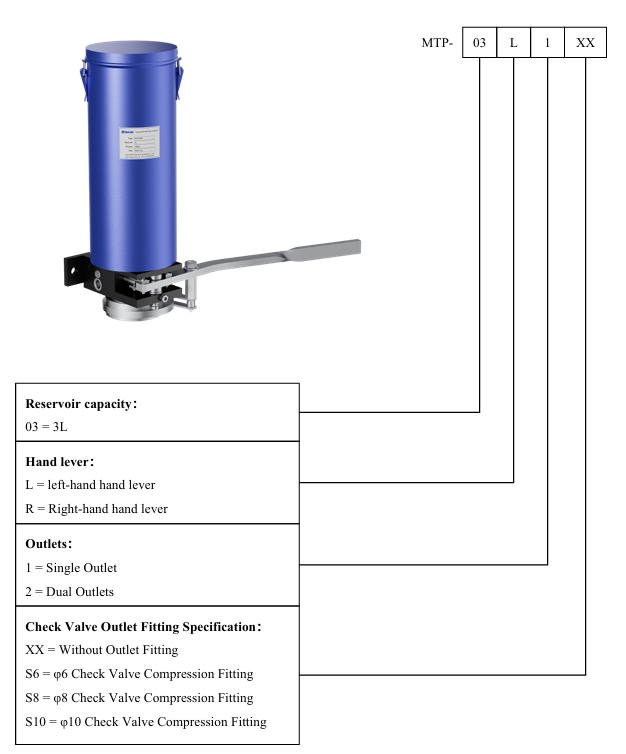

Ordering information of MTP Manually Operated Pump

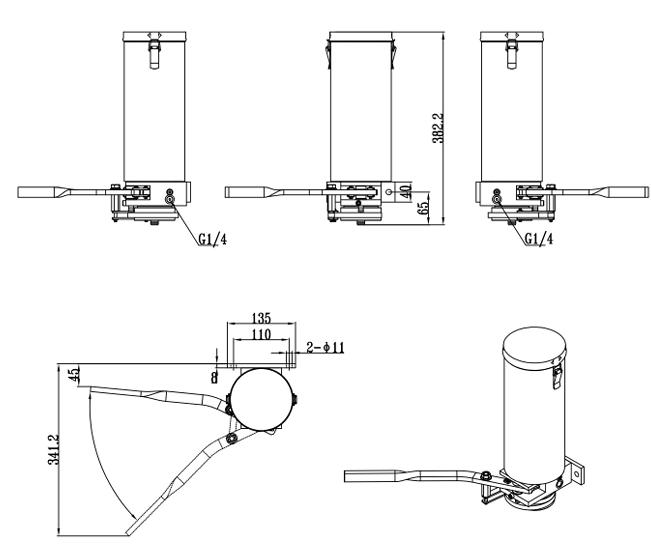

Dimensions(mm) of MTP Manually Operated Pump
| Parts ordering information | ||||
| Check Valve Compression Fitting | Item Number | Model Number | Tube OD | Thread |
| 0601099 | 5VM0604 | Ø6 | G1/4" |
5VM0804 | 5VM0804 | Ø8 | G1/4" | |
0601069 | 5VM1004 | Ø10 | G1/4" | |
Characteristics of MTP Manually Operated Pump
Suitable for use with dual-line or progressive systems
Dispenses greases up to NLGI 3
Available with left- or right-hand lever
Cisolube offer custom lubrication pumps with a wide selection, Contact now!
Applications of MTP Manually Operated Pump
Metal forming machines
Roll straighteners
Tyre heating presses
Harbor cranes
