Articulated dump trucks are widely used in mining, infrastructure construction, and large-scale earthmoving projects, performing exceptionally well in harsh conditions thanks to their superior off-road capabilities and high loading capacity.

However, these machines typically operate continuously for extended periods under heavy loads, intense vibrations, dust, and complex terrain, placing extremely high demands on the lubrication of critical moving parts. Insufficient lubrication can lead to excessive wear on pins, bushings, and bearings, reducing equipment reliability and increasing maintenance costs.

Installing an automated lubrication system ensures continuous and precise lubrication of critical components, reducing downtime and extending equipment lifespan.

This article introduces 17 critical lubrication points on articulated dump trucks and provides a complete centralized lubrication system solution based on the CISOLUBE GT or GP203 electric lubrication pump + DSP/DSPP progressive distributor.

I. Why Articulated Dump Trucks Need Automatic Lubrication Systems

Articulated dump trucks have numerous high-load articulation points, bearings, and connecting pins, requiring continuous lubrication during operation.

Traditional manual grease application typically encounters the following problems:

1. Widely distributed lubrication points, resulting in low maintenance efficiency.

2. Some lubrication points are hidden and easily missed.

3. Unstable lubrication cycles, accelerating component wear.

4. Excessive grease consumption, leading to waste. Automatic centralized lubrication systems, through timed, quantitative, and uniform grease supply, ensure stable lubrication at every lubrication point, thus completely solving the above problems.

II. 17 Key Lubrication Points in Articulated Dump Trucks

A typical articulated dump truck usually requires lubrication at approximately 17 key lubrication points.

These lubrication points are mainly distributed in the following systems:

1. Steering System

Left steering cylinder pin

Right steering cylinder pin

These components directly affect the vehicle's steering agility and handling stability.

2. Central Articulation Structure

Central Articulation Pin

This component connects the front and rear frames of the vehicle and is the core structure for articulated steering, while also bearing significant mechanical loads.

3. Suspension Swing System

Traction Rod Swing Bushing

This mechanism absorbs shocks and vibrations generated during vehicle operation.

4. Cargo Box Lifting System

Lifting Cylinder Base Pin

Lifting Cylinder Rod End Pin

Good lubrication ensures smooth and reliable operation of the lifting mechanism.

5. Cargo Box Hinge Structure

Cargo Box Hinge Pin

Tailgate Hinge Pin

These components move frequently during loading and unloading operations, therefore requiring continuous lubrication.

6. Other Structural Connection Points

Depending on the vehicle model, the following lubrication points may also be included:

Suspension Linkage Pin

Frame Connection Pin

Stabilizer Bar Joint

Structural Hinge Points

In general, an articulated dump truck typically has approximately 17 lubrication points requiring regular lubrication.

III. CISOLUBE Articulated Dump Truck Automatic Lubrication Solution

For the lubrication needs of heavy equipment, CISOLUBE offers reliable automatic centralized lubrication system solutions.

(I.) Typical systems include:

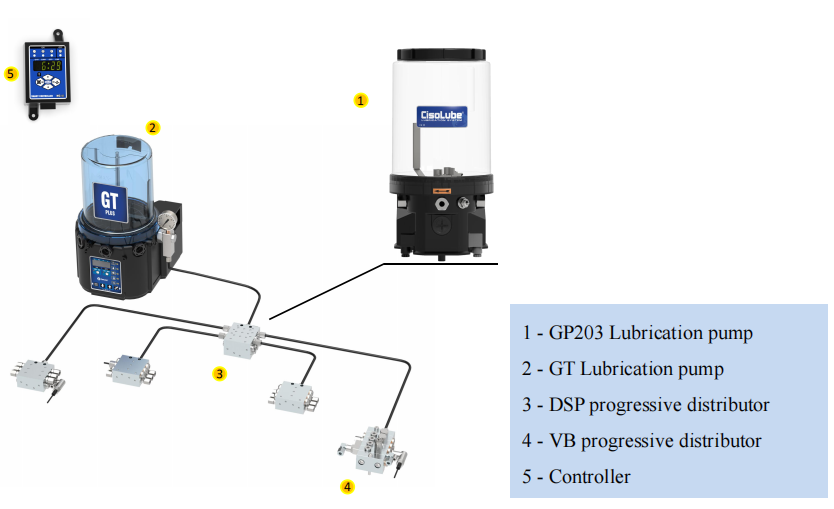

1. GT or GP203 electric lubrication pump

2. DSP or DSPP progressive distributor

3. High-pressure lubrication lines

4. Controller and monitoring system

This configuration belongs to the progressive lubrication system, widely used in:

Construction machinery

Mining equipment

Heavy vehicles

Agricultural machinery and equipment

(II.) Lubrication pump selection: GT and GP203 electric lubrication pumps

The lubrication pump is the power core of the automatic lubrication system.

The CISOLUBE GT series electric lubrication pumps and GP203 electric lubrication pumps are designed specifically for heavy equipment.

Key Features

1. High-pressure grease output

2. Automatic lubrication cycle control

3. Compatible with NLGI 0–2 grease

4. Compact design and easy installation

5. Suitable for high-vibration and dusty environments

For articulated dump trucks with 17 lubrication points, both the GT and GP203 provide a stable and reliable grease supply.

(III.) Lubrication Distribution: DSP/DSPP Progressive Distributor

The CISOLUBE DSP progressive distributor and DSPP progressive distributor are used to precisely distribute grease to each lubrication point.

Working Principle

When grease enters the distributor:

1. The internal piston moves sequentially

2. Each outlet dispenses a measured amount of grease

3. Each lubrication point receives lubrication in sequence.

Technical Advantages

1. Precise grease metering

2. Expandable to multiple lubrication points

3. Robust design suitable for heavy-duty equipment

4. High reliability even in harsh environments

By combining multiple distributors, the system can easily cover 17 or more lubrication points.

(IV.) Automatic Lubrication System Workflow

The system operates as follows:

1. The controller starts the lubrication pump.

2. Grease is delivered to the main oil supply line.

3. Grease enters the DSP/DSPP progressive distributor.

4. The distributor sequentially supplies grease to each lubrication point.

5. The system automatically stops at the end of the lubrication cycle.

6. The system can automatically operate according to the set lubrication time intervals, ensuring continuous and reliable lubrication of the equipment during operation.

(V.) Advantages of the Automatic Lubrication System

Installing the CISOLUBE automatic lubrication system on articulated dump trucks offers several advantages:

1. Reduced equipment wear.

2. Continuous lubrication reduces friction and extends the life of pins, bushings, and bearings.

3. Reduced maintenance costs.

4. Automatic lubrication reduces manual greasing and grease waste.

5. Improved equipment reliability.

6. Critical components are always well lubricated.

7. Increased production efficiency.

8. Reduced downtime for manual maintenance, increasing equipment utilization.

9. Extended equipment lifespan.

10. Significantly reduced wear on structural connections.

IV. Conclusion

For articulated dump trucks operating in mining and engineering environments, installing a reliable automated centralized lubrication system has become an essential part of equipment maintenance.

By using the CISOLUBE GT or GP203 lubrication pump in conjunction with the DSP or DSPP progressive distributor, precise and reliable lubrication can be provided to approximately 17 critical lubrication points, significantly reducing maintenance costs and improving equipment performance.
